Circular Lifting Straps — the Point Where the Strap Meets the Load, and the Sleeve That Owns It

1. Four Promises in the Product Name, and the One Nothing on This Site Explains

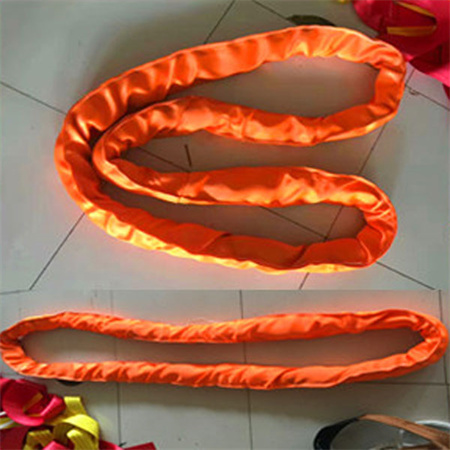

The listing for this article reads Circular lifting straps, flexible lifting straps, protective sleeves, circular lifting straps — four names for one product. Three of them are already covered elsewhere on this site, and one is not. Being precise about which is which is the difference between a page that helps a buyer and a page that repeats its neighbours.

The loop form is covered. The words circular and flexible describe the same two properties: the article is a closed loop with no ends, and it is made of textile yarn rather than wire rope or chain, so it conforms to the load instead of denting it. Both properties are the subject of the endless round sling page, which owns the closed loop and its hitches, and of the eye type round sling page, which owns the variant whose ends have been built up into loop eyes. This page links to both rather than restating them.

The tonnage is covered. Capacity bands are owned elsewhere: the 30 ton page for the middle of the range and the 300 ton page for the top of it, where the figure falls outside the published tables and has to be agreed in the contract.

The sleeve is not covered. This is the gap, and it is worth describing it exactly. The article is listed for sale with the words protective sleeves in its own name, and those words are not unique to this page: several other listings here carry them as well — among them a double layered protective sleeve circular lifting strap, a white flat protective sleeve ring eye lifting strap, and a wear-resistant sling sheath with a flat sling protective cover. But a listing is a name, not an explanation. The site's own wear-protection article, Wear Protection lifting sling, states its title, a short keyword field and one line of body text and goes no further; the pages that mention protection otherwise do so in passing. Nowhere does the site answer the questions a rigger actually asks: how do you decide that an edge needs protecting, what does the protection do, and what does it not do? Those questions have published answers, and they are set out here in §7, §8 and §9.

There is a reason the sleeve deserves its own page rather than a sentence. The article is made of two parts with two different jobs, and the part that takes all the load is the part you cannot see (§2). Everything a buyer can check — the colour, the label, the condition of the surface — describes the sleeve. So the sleeve is not a detail of this product; on this product it is the entire interface between the user and the load path.

2. The Article Is a Load-Bearing Core Inside a Sling Protective Cover

The construction is described on this site in its own words. The production article for circular lifting straps states that the article is made of the highest quality synthetic fibers and processed using advanced weaving equipment and technology, that it mainly consists of a load-bearing core and a sling protective cover, that the load-bearing core is arranged in a stepless and parallel manner, and that the protective sleeve is connected in a ring shape by a specially designed wear-resistant sleeve to warn and protect the safe use of the load-bearing core. That last clause is the whole argument of this page in one line: the sleeve's two documented jobs are to warn — to carry the identification and the capacity colour — and to protect.

The company's technical note on its circular lifting rope adds the part that matters to anyone inspecting these articles: the rope is made by a fully woven process, so that the entire lifting rope cannot be found to have a single joint, and the main load-bearing body is a complete loop through body. Read that as a construction statement rather than a safety guarantee — it describes the load path, not a promise about outcomes. What it means in practice is that there is no sewn splice in the load-bearing core of a circular lifting strap, which is exactly why the article belongs to the roundsling family and not to the flat woven family. The site's flat woven articles, such as the Eye and Eye Type Webbing Sling, are built to EN 1492-1 and carry sewn load-bearing splices; a roundsling is built to EN 1492-2 and carries none (§3).

Two consequences follow, and both are practical. First, the article cannot be shortened, knotted or twisted to adjust it: the load path is a closed loop, and the published rigging practice is explicit that a sling is not to be shortened or lengthened by knotting or twisting, and that a knot in the round sling body is itself a removal criterion (§6). Second, wear that stops at the sleeve is the sleeve doing its job, not a defect — which is why the sleeve is described below as a consumable rather than as a permanent fixture (§8).

3. What the Rated Capacity Depends On, and Why the Sleeve Cannot State All of It

A buyer's first question about any sling is what it will lift, and the honest answer for a roundsling is that the figure is not a property of the article alone. The published guidance for synthetic round slings lists the basis of the rated load as five things: material strength, design factor, type of hitch, angle of loading, and diameter of curvature over which the sling is used. Two of those five are decisions made on site, after the sling has left the factory, which is why a single printed number cannot describe every lift the article will ever make.

The same guidance fixes how the figure is to be read. Where an angle is not shown in the tables, the next lower angle is to be used, or the value calculated by a qualified person. Horizontal angles below 30 degrees are not to be used except as recommended by the sling manufacturer or a qualified person. And for a choker hitch the tabulated value applies provided the angle of the choke is 120 degrees or more; a tighter choke must be reduced unless the manufacturer's own figures say otherwise.

This is where the sleeve's limitation becomes concrete. The colour code on a circular lifting strap (§4) is a shorthand for the straight single-leg vertical capacity. It is not a statement about a two-leg set at an angle, and it is not a statement about a basket. The rule of thumb is that a basket put two parts of the loop under the load and is commonly rated at twice the vertical figure, while a choker is commonly rated at eighty per cent of it — but those multipliers belong to the hitch, not to the colour, and the choke limit above applies to them all. When the geometry is outside the tables, the answer is a qualified person's calculation, not a colour.

The last line is the bridge to the rest of this page. Of the five factors, diameter of curvature is the one that a protective sleeve can influence, and type of hitch and angle are the two that a protective sleeve cannot influence at all. That split is exactly the difference between protecting a sling and rating one, and it is set out properly in §9; the handling rules that follow from the hitch and the angle are collected in §11.

4. The Colour Code on the Sleeve, and the Case Where There Is No Code

Because the sleeve is the only part of a circular lifting strap a user can read at arm's length, the family carries its capacity as a colour. The roundsling colour code gives one colour per straight-lift capacity step, and the reason this page sets the whole table out is that the code is often quoted as a list of colours without the capacities attached — which makes it useless at the point of use.

Two things about that table are easy to miss and both matter. First, the code stops at orange, and the top step is expressed as a floor rather than a figure — ten tonnes and above. A 30 tonne article and a 300 tonne article are therefore not distinguishable by colour, and above this band the capacity has to be agreed, tested and labelled rather than read off a sleeve; the large tonnage page deals with that case in full. Second, the code is not a licence to skip the label. Even where the colour is correct, the identification requirements assemble a longer list than one colour can carry, and the inspection rules make missing or illegible sling identification the first item on the list of conditions that put a sling out of service (§6).

It is worth adding what the colour does not encode, because this is the most common misreading of the system: the colour says nothing about the material the core is made from, nothing about the sleeve's own material, nothing about the temperature range, and nothing about whether the sling is fit to use today. It is a capacity shorthand and nothing more.

5. Temperature, Chemicals and the Cover-Is-the-Core Rule

The environment is the factor most often left out of a lift plan and the one most often responsible for a sling losing strength while looking untouched. The published figures for polyester round slings are specific. A polyester round sling is not to be used in contact with objects, or at temperatures, above 194 degrees F (90 degrees C), or below minus 40 degrees F (minus 40 degrees C). Separately, and this is the figure that catches people out, some synthetic yarns do not retain their breaking strength during long-term exposure above 140 F (60 C) — so a sling that spends its life beside a heat source can degrade at a temperature well inside the headline limit.

Sunlight and ultraviolet radiation are treated the same way: long-term exposure can affect the strength of a polyester round sling, and the manufacturer is to be consulted for retirement criteria for slings stored or used in sunlight. Chemicals are treated more strictly still, with a rule that reads like a construction requirement rather than a caution: in chemically active environments the cover is to be the same yarn as the load-bearing core. The reason is straightforward. If the sleeve and the core are the same material, then a chemical attack that the sleeve survives is a chemical attack the core survives too — the sleeve is a witness for the core. If they are different materials, a sleeve can come through an exposure intact while the core inside it has already lost strength, and the user has no way of knowing.

6. What You Inspect Is Not What Carries the Load

Everything a user can see on a circular lifting strap is sleeve. The core that carries the load is inside it, by design, and cannot be examined. That asymmetry is not a defect of the article, but it does dictate how the article is to be checked, and the published inspection rules are built around it: a qualified person inspects the sling and all its fittings each day before use, and additional periodic inspections are made at intervals no greater than 12 months — yearly for normal service, monthly to quarterly where service is severe, and at a qualified person's recommendation for special or infrequent use.

The list of things to look for reads, in order, as a list of ways the sleeve can betray the core: missing or illegible sling identification, acid or caustic burns, evidence of heat damage, holes, tears, cuts, abrasive wear or snags that expose the core yarn, broken or damaged core yarns, welding splatter that exposes core yarns, knots in the round sling body — except for core yarn knots inside the cover — discolouration and brittle or stiff areas on any part of the sling, and pitted, corroded, cracked, bent, twisted, gouged or broken fittings. Where any such damage or deterioration is present, the sling or attachment is to be removed from service immediately.

Read the first and the fourth items together, because they explain each other. Identification comes first because a sling whose capacity cannot be established cannot be used, whatever its condition. And exposed core yarn appears three times in the list — under cuts, under splatter, and on its own — because the core is the only part that matters structurally, and any route by which the outside world reaches it is a removal criterion. That is also why temporary repair is excluded: the rules for this family prohibit temporary repairs of round slings and fittings, prohibit repairing melted or damaged internal yarns, and require any repair that is made to be carried out by the manufacturer or a qualified person and marked to show who did it.

7. The Point Where the Strap Meets the Load: When an Edge Counts as Sharp

This is the subject this product's own name promises and nothing else on this site covers. It starts with a misconception that is common enough to have a stock answer on site: it is not sharp, it is rounded. In textile lifting, whether an edge is sharp has nothing to do with how it feels or how it looks. It is a question of geometry under load, and there is a published rule for it.

A practical engineering principle used throughout the lifting industry is that if the edge radius of a fitting is smaller than the compressed thickness of the loaded sling, the edge is considered a sharp edge. Written in the trade's own symbols: where r is the edge radius of the load and d is the compressed thickness of the loaded round sling, r smaller than d means a sharp edge. The worked example that makes the point is a machined steel shaft with a 20 mm radius — nothing about it looks sharp — carrying a round sling that compresses to 35 mm under load. Since 20 mm is smaller than 35 mm, the shaft is a sharp edge to that sling. The sling cannot wrap it smoothly; the force concentrates into a very small contact area; and the pressure on the load-bearing fibres rises far beyond what the load figure alone would suggest.

Three further rules complete the picture, and they are worth keeping together because they are frequently conflated.

For lifting hardware the figure is different. Shackles, crane hooks, master links and lifting eyes are engineered to receive textile slings, and for those components the accepted principle is that the bearing radius is at least the compressed sling thickness (r at least d). Hardware and load edges are not to be assessed by the same yardstick — a hook that satisfies its own rule has not thereby made the load safe.

Not sharp is not the same as ideal. For the load being lifted — fabricated steel, concrete, machinery — engineering best practice is an edge radius of at least three times the compressed sling thickness (r at least 3d), so that the sling wraps naturally and the pressure spreads over a much larger area.

Radius is not the whole story. The published assessment also names abrasive concrete, flame-cut steel, heat, weld spatter, knots, gear teeth and rough fabricated edges as hazards in their own right, and it makes the point that movement during the lift matters as much as geometry: a sling that is safe while stationary can be cut by a load that rotates, settles or drags across an edge, because small movements create a cutting action that damages the cover and then the yarn inside it. That is the mechanism behind most edge failures, and it is the reason the protection discussion in §8 is about where a sling will move, not only about where it starts.

The requirement itself is not advisory. Slings shall be padded or protected from the sharp edges of their loads — that is the published occupational safety rule for slings in general industry, and the guidance for synthetic round slings repeats it in operational form: sharp edges in contact with slings are to be padded with material of sufficient strength to protect the sling. The consensus standard for slings takes the same position for synthetic slings, requiring that they be protected from cutting and abrasion wherever edge or corner contact exists, and placing protection before the lift begins. Enforcement practice treats edge protection as a required step rather than a recommendation: damage from an unprotected edge can be a violation even where the sling was well inside its rated capacity.

One further measurement is worth knowing because it is the one protection changes most directly. The ratio of the load edge diameter to the sling diameter — the D/d ratio — determines how tightly the sling is forced to bend. A small radius forces a sharp bend and raises the tension in the fibres; a larger radius distributes the load more evenly. Protective material that thickens the contact raises the effective radius the sling sees, which is why protection is deliberately made thick rather than merely tough, and why a sleeve can improve the geometry of an edge it has not changed at all.

8. Three Families of Protection, and What Each One Is For

Edge protection is not one product. The published guidance sorts it into three families, and choosing between them is a question of load geometry, edge severity and how often the lift is repeated.

Wear pads and flexible padding act as a barrier between sling and edge, spreading pressure across a larger area and reducing direct fibre contact. Materials include leather, reinforced rubber and woven fabric composites. They are economical where load shapes change, but they are removable, so they have to be positioned before each lift and can shift if they are not secured.

Corner protectors are rigid or semi-rigid devices that fit over a sharp edge and present a defined radius to the sling — moulded rubber, polyurethane or reinforced composites are typical. They suit repeated lifts of similar loads with consistent corner geometry, and they must be correctly sized, which is also their limitation: irregular shapes are not what they are for.

Chafe sleeves, sometimes called tubular protection, wrap around the sling body itself and stay on it, giving continuous protection at known contact points. They are made from abrasion-resistant material, and the tubular design spreads contact pressure evenly around the sleeve surface instead of concentrating it. Field crews can install them without taking the sling out of service, and the guidance on coverage is specific: the protection zone should extend several inches beyond each contact point, to allow for the sling moving during the lift. That last detail is the one most often got wrong in practice, and it follows directly from §7, where movement was named as a hazard in its own right.

Combinations are normal on real lifts — corner protectors on the sharpest edges, sleeves at the main contact points — and the choice is properly made in the lift plan rather than at the hook. It is worth saying plainly that the three families differ in where the protection sits: pads and protectors belong to the load and travel with it, while a chafe sleeve belongs to the sling. That is the practical difference between protection you have to remember to bring and protection that is already where it is needed.

9. What Protection Does and Does Not Change

Protective equipment on a sling is easy to read as margin, and that reading is wrong in a way that matters. A padded edge is not a stronger sling, and a sleeve is not a licence to lift more. What protection does is change the mechanics at the contact point, and what it does not do is change the rating of the article. Keeping those two sentences apart is the whole discipline.

What it changes: it removes direct contact between the load edge and the sling, so that the pressure concentration described in §7 is absorbed by a sacrificial layer instead of by the load-bearing fibres; it adds an abrasion barrier where a surface is rough rather than sharp; and, because protective material is deliberately thick, it raises the effective radius the sling sees, improving the D/d geometry of an edge whose actual radius has not changed at all. It also converts an expensive failure into a cheap one: the sleeve is a consumable component, and a sleeve that wears instead of the sling is a sleeve working as intended.

What it does not change: the capacity, the design factor, the hitch multipliers or the angle limits of §3, the temperature and chemical limits of §5, or the duty to inspect. Nor does it remove the hazard — a sleeve that shifts during a lift, or a pad that was left in the workshop, protects nothing. This is why protection is described in the guidance as an engineering control applied before the lift begins, and why the coverage rule in §8 is worded in terms of movement rather than of the starting position.

The sleeve is the whole interface. It carries the identification and the colour code, it takes the contact at the load, and it is the only part of the article that can be examined — while the core inside it carries the load (§2, §6).

10. Specifying a Circular Lifting Strap, and What Arrives on the Label

Because two of the factors that decide the rating are set on site and one of them — curvature — is the factor a sleeve touches, an order for this article is properly written as a short specification rather than as a size. The following is the list worth working through before the enquiry is sent.

State the duty first, not the article. What is being lifted, by what hitch, at what angle, onto what kind of edge, in what environment. That single sentence decides the capacity band, the sleeve, and whether the lift needs protection at all.

State the sleeve's job explicitly. A sleeve supplied as standard identification and a sleeve supplied to survive repetitive contact with flame-cut steel are different articles at different prices, and the difference is thickness, material and coverage (§8). Ask for the protection zone to extend beyond the contact point, and say which contact point you mean.

State the markings you must be able to read on site. New slings of this family are marked to show the rated load for the types of hitches and the angle on which it is based, the core material, and the cover material if it differs from the core, and they may also carry the manufacturer's name or trademark and a code or stock number. For work in the United States it is worth knowing that the general industry sling rule requires the padding or protection itself, and that missing or illegible identification is the first item on the removal list (§6). For work in Europe, the sleeve colour carries the straight-lift figure within the range of §4 — and a cover whose material differs from the core will be marked as such, which matters most where the environment is chemically active.

State the documents that must travel with the shipment. The article's strength is inside a part the buyer cannot examine, so the paperwork is not an accessory: it is the only description of the load path that can be checked. A declaration of conformity to EN 1492-2, a test certificate for the batch, and the factor the article was made to — commonly 7:1 — are what make the capacity claim verifiable rather than asserted. Where a lift falls outside the published tables, such as the very large tonnage case handled on the 300 ton page, the factor, the test and the marking all have to be written into the contract instead.

Finally, note that this site builds a dedicated wear-protection article as well as sleeved slings: Wear Protection lifting sling exists for the case where the job is protection itself, and is the right enquiry when a sling has to work repeatedly against the same hard edge.

11. Hitching, Angles and the One-Third Rule

The rules that govern how the article is used are short, and each of them exists because the failure it prevents is common. They are collected here because they apply to every circular lifting strap regardless of capacity, and because several of them are the difference between a lift that is inside the tables and a lift that only looks like it is.

In a basket hitch the load must be balanced so that it cannot slip, and the legs of the sling are to contain or support the load from the sides and above its centre of gravity, so that it stays under control. In a choker hitch the choke point goes on the sling body and never on a splice or fitting, and a choke angle below 120 degrees is not to be used without reducing the rated load. A sling is never to be shortened or lengthened by knotting or twisting, and it must not be constricted, bunched or pinched by the load, the hook or any fitting.

Two rules about loads and openings are worth memorising. An object in the eye of a sling is not to be wider than one-third the length of the eye — the rule that keeps hardware from spreading an eye until the load path is compromised. And loads are not to be rested on the sling, nor is a sling to be pulled from under a load that is resting on it; dragging a sling across a floor or an abrasive surface is prohibited for the same reason. Shock loading is prohibited outright, and twisting and kinking are to be avoided, because both convert a load the article is rated for into a load it is not.

12. Frequently Asked Questions
